Today, I want to share my understanding of Software-Defined Networking (SDN) and how modern networking has moved beyond traditional infrastructure challenges.

The Traditional Networking Approach

Earlier, enterprise networks were built using physical networking devices:

  1. Switches

  2. Routers

Hardware appliances such as firewalls, load balancers, and intrusion prevention systems

These devices acted like toll gates, processing each packet traveling from Computer A to Computer B. Every function — routing, filtering, monitoring, prioritization — was tightly coupled with the hardware.

However, this approach introduced several limitations:

  • Vendor lock-in : Network devices used proprietary software and protocols; switching vendor ecosystems was expensive and complex.

  • Manual configuration overhead : Every router, switch, and firewall needed individual rule updates.

  • Scalability challenges : Growing network demands required more hardware and administrators.

  • Slow change management : Policy updates could take days or weeks to roll out across an entire network.

Organizations needed a way to centralize control and accelerate network agility.

How SDN Solves These Problems

Software-Defined Networking introduced a layered architecture and separated the control of the network from the data forwarding.

SDN Architecture

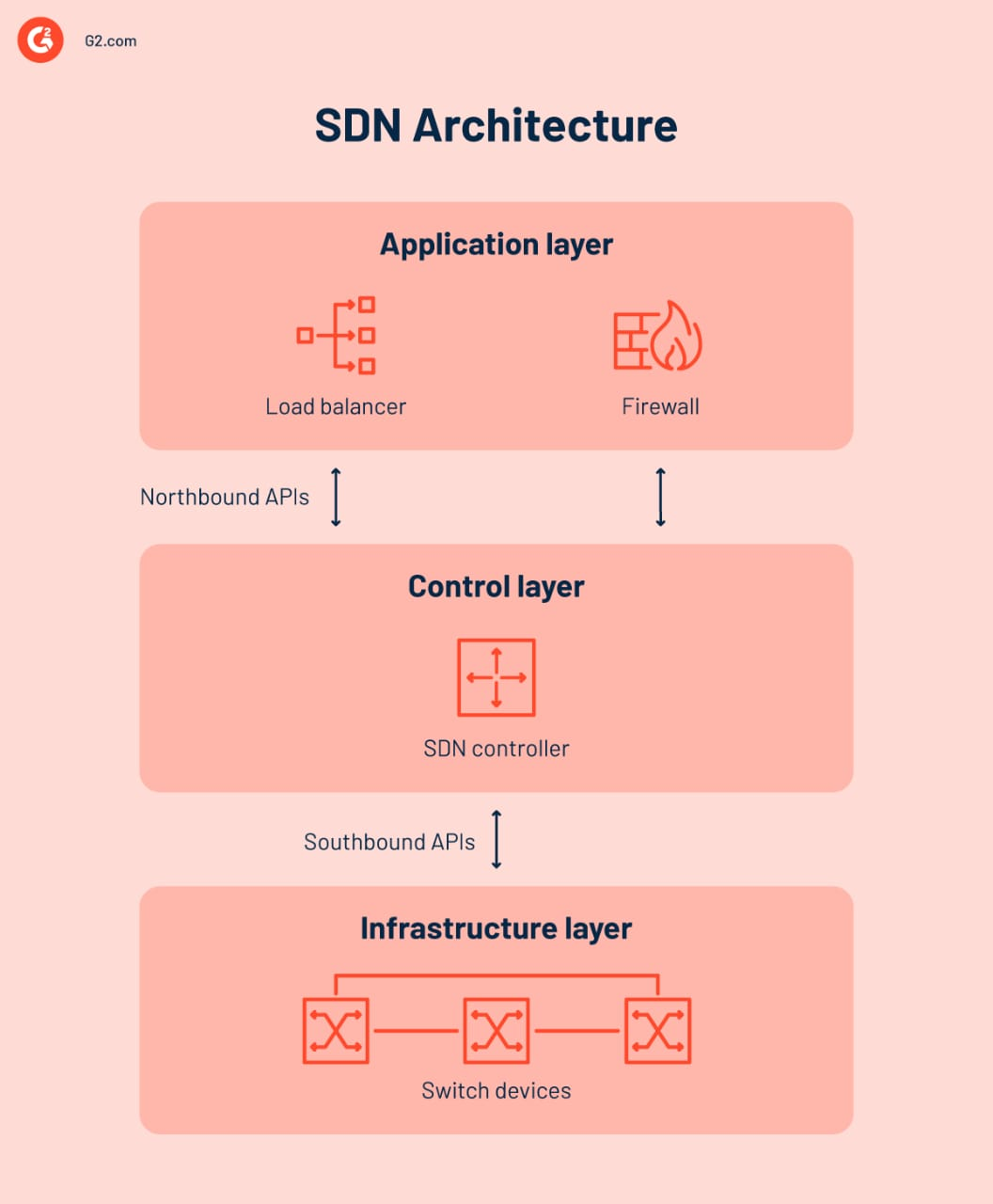

SDN architecture

  1. Application Layer Defines network policies and business requirements
  2. Control Plane SDN controller decides rules, manages routing, and maintains global network view
  3. Data Plane Physical/virtual switches that forward packets based on the rules

Northbound & Southbound APIs

To enable communication across layers & reduce human errors:

  • Northbound APIs : Between Application Layer & Controller. Used for policy input.

  • Southbound APIs : Between Controller & Network Devices. Used to push forwarding rules (e.g., OpenFlow).

How Packet Forwarding Works

SDN switches contain flow tables. When a packet arrives:

  1. The switch extracts the packet header.

  2. It searches for a matching flow entry.

  3. If a match exists → executes the specified action (forward/drop/modify) & update the counter.

  4. If no match is found → sends the packet to the controller for instructions.

  5. Controller installs a new flow rule and updates counters.

This automation minimizes manual configuration and reduces human error.

Flow table & flow entries

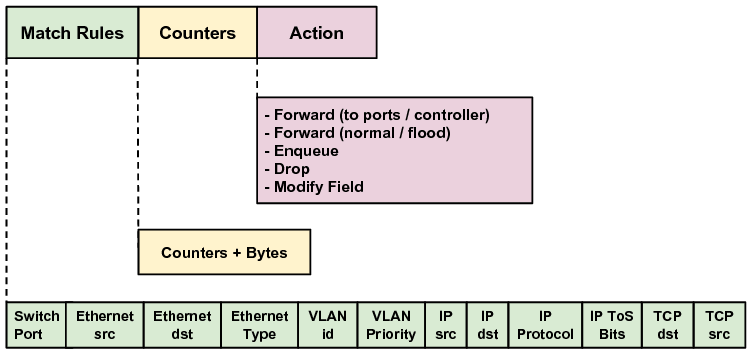

flow table structure

In an OpenFlow-enabled switch, packet forwarding is determined by Flow Tables. Each table contains multiple Flow Entries, which define how incoming packets should be processed. Switches may contain a pipeline of several flow tables, enabling flexible and programmable packet treatment.

Flow Table Components A flow table consists of the following elements:

Component Description
Match Fields Header fields used to classify packets and compare against flow entries
Counters Track statistics of matched packets (e.g., packets processed, bytes transferred, duration)
Instructions / Actions Define what to do when a match is found

Flow Entries Each entry in a flow table describes a forwarding rule applied to packets. A Flow Entry contains:

Element Description
Match Fields Criteria to match packet headers
Priority Determines rule selection when multiple entries match
Counters Incremented on each match
Instructions / Actions Specifies forwarding, dropping, modifying, or pipeline navigation
Timeouts Idle-timeout or hard-timeout for rule expiration
Cookie Application-specific identifier for tracking and debugging

Match Fields Match fields define which packet characteristics are used for comparison when searching for a matching rule.

Examples of commonly used match fields:

  • Ethernet source/destination MAC address
  • VLAN ID / Ethernet Type
  • IP source/destination address
  • IP protocol (TCP/UDP/ICMP)
  • TCP/UDP source & destination ports
  • MPLS label
  • Ingress port

Example: Match: (src_ip=10.1.1.5, dst_port=443, protocol=TCP)

Counters Counters gather statistics about matched packets and are useful for monitoring, load-balancing, and analytics.

Counter Meaning
Packet Count Number of packets matching the rule
Byte Count Total size of packets
Duration Lifetime of the rule

Actions & Instructions

Actions specify what happens to packets that match flow entries. They can be required or optional depending on OpenFlow version.

Required Actions

Action Description
Output Send packet to a specified port (physical, logical, or controller port)
Drop Discard the packet by specifying no action

Optional Actions

Action Description
Set-Field Modify packet header fields (MAC, IP, VLAN, etc.)
Push/Pop VLAN/MPLS Tag Add or remove encapsulation tags
Group Use group tables for load balancing, multipath forwarding, broadcast/multicast
Queue Assign packets to a QoS queue
Goto-Table Continue processing in the next flow table

OpenFlow Messaging

OpenFlow defines message types used for communication between the SDN Controller and OpenFlow-enabled switches. These messages exchange state, topology, flow rules, and packet-handling decisions.

Types of OpenFlow Messages

Category Description Initiated By
Controller-to-Switch Messages Used to configure switch behavior (manage flow tables, request stats, send rules) Controller
Symmetric Messages Exchanged by both controller & switch without prior request (e.g., Hello message) Both
Asynchronous Messages Notify the controller about network events, state changes, packet arrivals, and errors Switch

Controller–Switch Interaction Workflow

Typical interaction flow between an SDN Controller and OpenFlow switch:

1. Connection Setup

  1. The switch sends a Hello message to the controller when powered on or newly added to the network.
  2. The controller responds with its Hello message to establish the OpenFlow session.

2. Topology Discovery

  • The controller uses protocols like LLDP to learn the full topology.
  • When a packet arrives without a matching flow entry, the switch sends a Packet-In message to the controller.

3. Controller Decision Processing After receiving a Packet-In, the controller:

  1. Runs routing/security/policy logic
  2. Decides the appropriate action
  3. Sends a Flow-Mod (flow modification) message to install new forwarding rules on the switch
  4. For the pending packet, sends a Packet-Out message instructing where to forward it

Future packets Any similar packets now match the installed rule, so the switch handles them locally without contacting the controller.

OpenFlow Pipeline : How a Switch Processes Packets

When a packet enters an OpenFlow switch:

  1. Flow Table Lookup
    • Extract packet header fields
    • Search flow tables (priority-based lookup)
  2. Match Found
    • Execute associated action (forward, drop, modify, send to port, group)
    • Update counters (used for stats & monitoring)
  3. No Match
    • Apply default instruction : send Packet-In to controller
    • Wait for controller guidance (Flow-Mod + Packet-Out)

NFV: Network Function Virtualization

SDN enables centralized control, but we still need firewall, NAT, DPI, WAN optimization, etc. Instead of deploying physical boxes, NFV provides software-based implementations of these services.

Components of NFV:

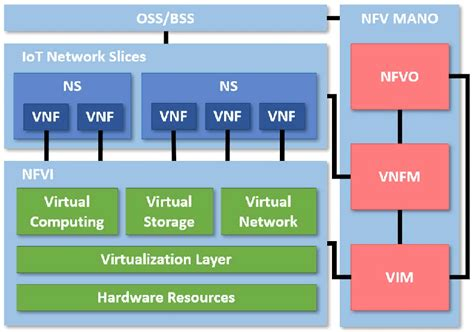

NFV architecture

  1. VNF (Virtual Network Functions) Software versions of network functions (firewall, IDS, LB, etc.)
  2. NFVI Virtualization infrastructure (compute, storage, networking) need by VNF to run
  3. OSS/BSS Business and operations support systems got NFV
  4. MANO (Management and orchestration of VNFs)
    • VIM : Control & manages NFVI resources
    • VNFM : Manages VNF lifecycle
    • NFVO : Orchestrator that …

This reduces cost and enables flexible deployment similar to cloud computing.

Note: The SDN apps is not the same as NFV apps like firewall, load balancer, etc.

Network Slicing: Use Case in 5G

Network slicing creates multiple dedicated virtual networks on shared physical infrastructure. Different industries have different requirements:

  • Autonomous vehicles : ultra-low latency
  • Video streaming : high bandwidth
  • IoT sensors : massive device connectivity

Without slicing, ISPs would need separate hardware per use case, extremely expensive. With slicing, each service gets its own optimized virtual network.

Conclusion

SDN modernizes networking by:

  1. Centralizing control

  2. Enabling automation

  3. Increasing scalability and flexibility

  4. Reducing operational cost

  5. Supporting advanced capabilities like NFV and Network Slicing

It transforms networks from rigid hardware systems into programmable, dynamic environments
